Smart Motion Sensor and Night Light - How To

How to make a Smart Motion Sensor out of a Night Light Smart Plug.  An excellent solution to easily put a motion sensor in a room where you couldn't before for automated lights. You also get a night light and smart plug in the same package for less than $20!

Parts List
Smart Plug - iMah or iClever
PIR Motion AM312 Sensor - 2 pack or 1 pack

Soldering Iron Station
Helping Hands(as shown)
Better Helping Hands
0.015 Solder
Female Jumper Wires
USB FTDI for Flashing

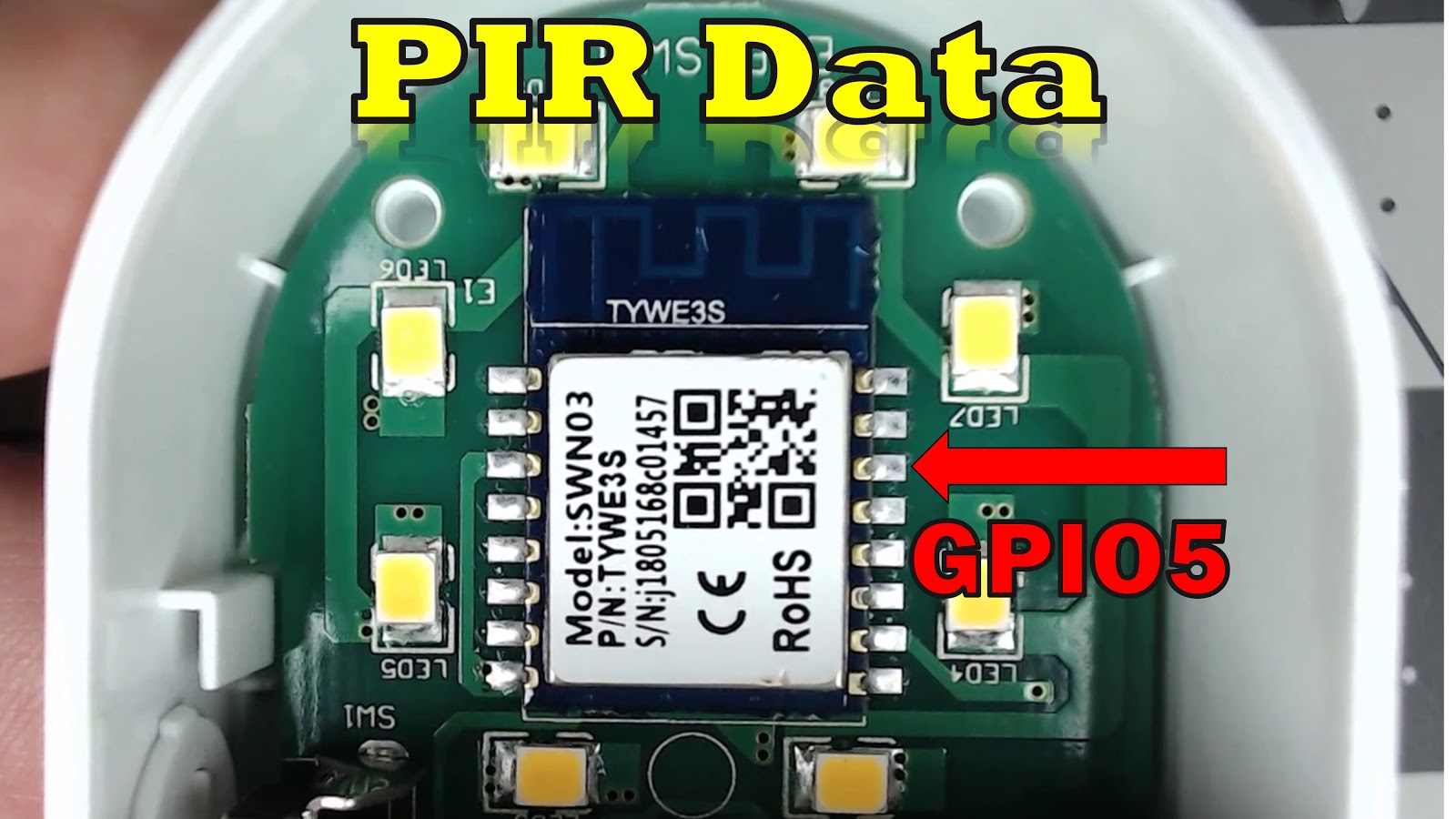

(click the pic to zoom)

Home Assistant Configuration YAML - Samples

switch:

  - platform: mqtt

    name: "MotionNite Switch"

    state_topic: "stat/MotionNite1/POWER1"

    command_topic: "cmnd/MotionNite1/POWER1"

    availability_topic: "tele/MotionNite1/LWT"

    qos: 1

    payload_on: "ON"

    payload_off: "OFF"

    payload_available: "Online"

    payload_not_available: "Offline"

    retain: false

binary_sensor:

  - platform: mqtt

    name: "MotionNite PIR"

    state_topic: "MotionNite1/PIR"

    availability_topic: "tele/MotionNite1/LWT"

    qos: 1

    payload_on: "1"

    payload_off: "0"

    payload_available: "Online"

    payload_not_available: "Offline"

    device_class: motion

light:

  - platform: mqtt

    name: "Motion Night Light"

    state_topic: "stat/MotionNite1/POWER2"

    command_topic: "cmnd/MotionNite1/POWER2"

    availability_topic: "tele/MotionNite1/LWT"

    brightness_state_topic: "stat/MotionNite1/RESULT"

    brightness_command_topic: "cmnd/MotionNite1/Dimmer"

    brightness_scale: 100

    brightness_value_template: "{{ value_json.Dimmer }}"

    qos: 1

    payload_on: "ON"

    payload_off: "OFF"

    payload_available: "Online"

    payload_not_available: "Offline"

    retain: false
